Pin-Out for the Straight Through

StarTech.com 6 ft Straight Through Serial Cable – DB9 F/F – Serial cable – DB-9 (F) to DB-9 (F) – 6 ft – MXT100FF

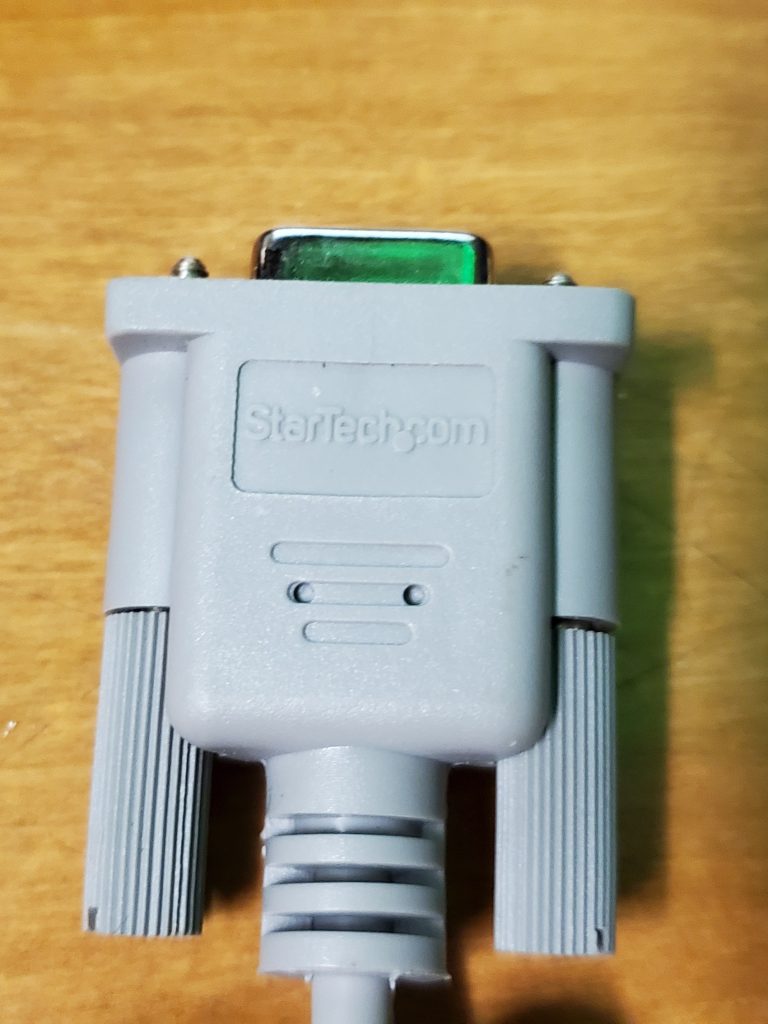

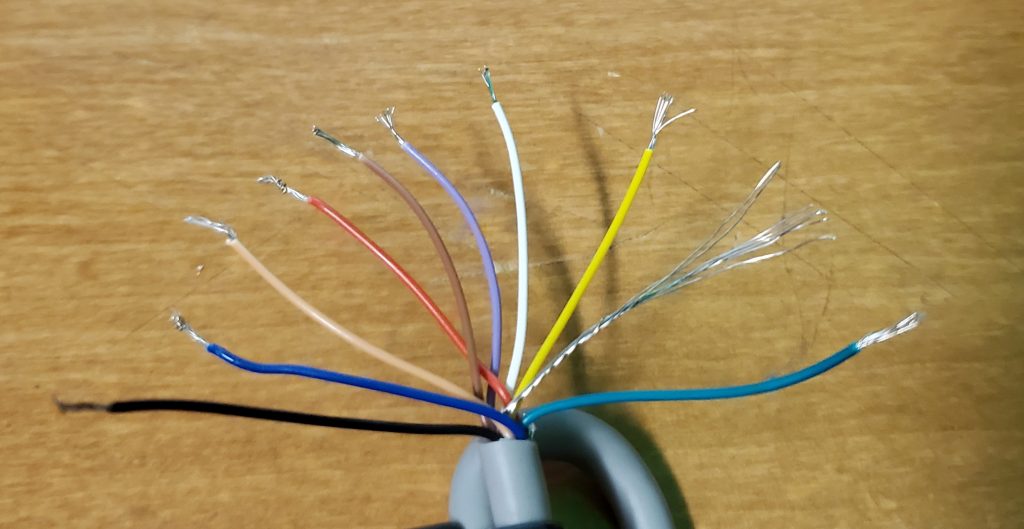

Pins:

  1. YELLOW
  2. PEACH
  3. RED
  4. BROWN
  5. BLACK
  6. GREEN
  7. BLUE
  8. WHITE
  9. PURPLE

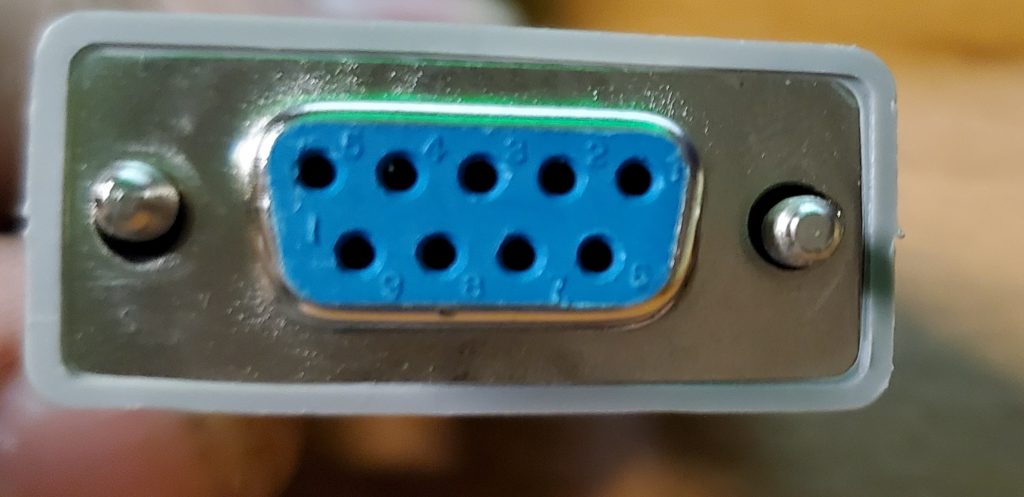

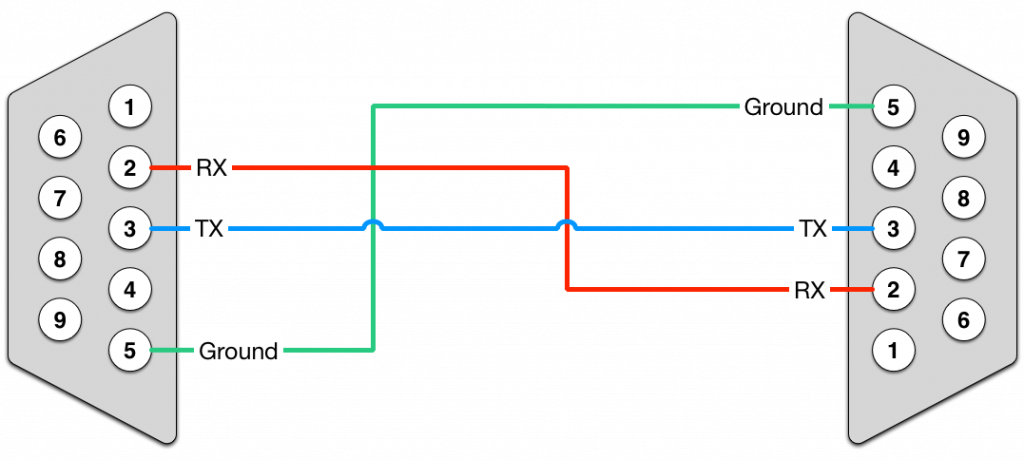

Convert to a NULL MODEM CABLE

  1. Connect the Black(5) to Black(5)
  2. Connect Peach(2) to Red(3)
  3. Connect Red(3) to Peach(2)
